RTFANS product referenceHVLS Fans / Product record
publishedPortable HVLS Fan KA-38Y
The Portable HVLS fan KA-38Y is a compact and efficient air conditioning solution that can quickly move from room to room. Unlike traditional central air ...
SeriesProduct record
ModelKA-38Y
CategoryHVLS Fans
Product record retained for engineering review and project selection.
Product overview
Specification snapshot
MPN / modelKA-38Y
Airflow38,000
Rated power0.6
Voltage220-240V/50-60Hz
Product record
Technical specifications
| MPN | KA-38Y |
|---|---|
| SKU | KA38Y001 |
| Voltage/Freq (V/Hz) | 220-240V/50-60Hz |
| Max Air Flow(CMH) | 38,000 |
| Max RPM | 440 |
| Power (Kw) | 0.6 |
| Fan Diameter | 1.25m/48 inch |
| Control | VFD Stepless Speed |
| Weight | 60 |
| Air Delivery Distance | 45m |
| Applicable Area(m²) | 400~500 |
Product context
About Portable HVLS Fan KA-38Y
Portable HVLS Fan KA-38Y is designed for large factories, warehouses and high-heat industrial spaces. Its controlled air movement helps equalize temperatures and reduce stagnant air in large occupied spaces.
38,000 airflowFresh-air evaporative cooling400~500 application area
Operating principle
How it works
Draw in hot air
The fan or blower pulls hot outdoor air through the wet pads.
Deliver cooled air
Heat is absorbed through evaporation before filtered air reaches the occupied space.
Built for industrial use
Engineering features
High-volume fresh air
Continuous outdoor air movement helps reduce heat in open or semi-open facilities.
Efficient cooling pads
Even wetting supports stable evaporation, filtration and cooling performance.
Durable construction
Corrosion-resistant housing and reinforced components support long service life.
Simple controls
Timer, temperature and optional humidity controls make daily operation easier.
Selection data
Performance profile
- Airflow
- 38,000
- Rated power
- 0.6
- Application area
- 400~500
- Water consumption
- Needs confirmation
Before specifying
Operating notes
Cooling performance depends on entering air temperature, relative humidity and ventilation. The system performs best where cooled fresh air can move continuously through the space.
Service routine
Maintenance checklist
Before seasonal shutdownTurn off the water supply, empty and clean the tank, and dry the cooling pads.
During extended storageDrain circulating water and check the tank, pads and housing for scale, algae or corrosion.
Facility planning
Recommended applications
Airflow and Installation Details
Review the airflow pattern, control system, installation conditions and operating range for this fan.

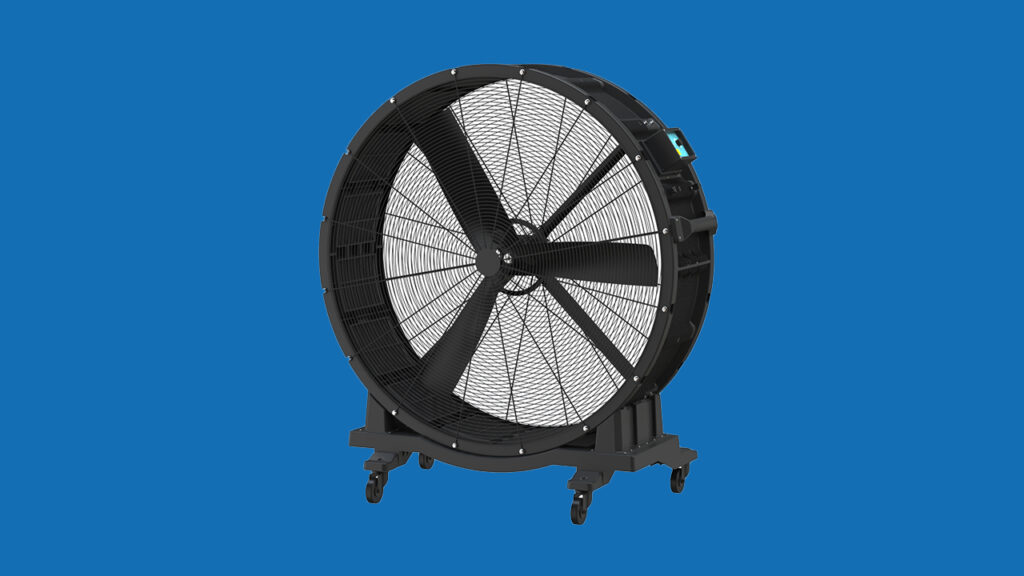

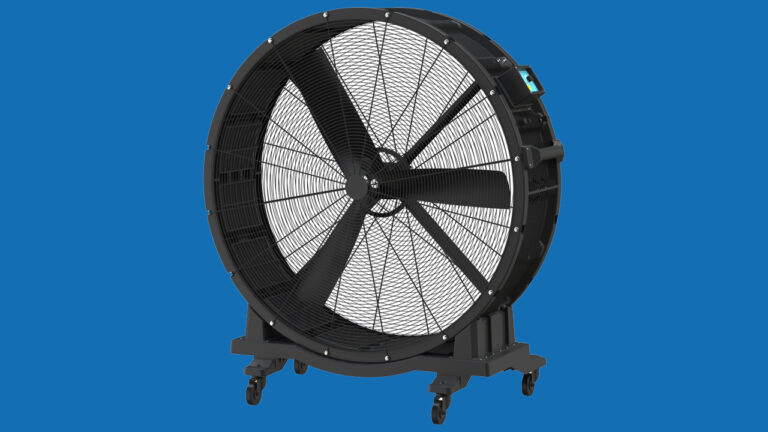

The latest addition to the portable hvls fan range, the Portable Fan, is a hand-push device that offers significant air volume. Standing at an impressive height of 1.25m, this fan is equipped with four casters, allowing easy movement both indoors and outdoors. The fan blades are powered by high-output PMSM permanent magnet synchronous motors.
By utilizing RTFANS’s HVLS Fans, air coolers, and other systems, we can establish a comfortable indoor environment, enabling people to rest and work more effectively.
The Portable HVLS fan KA-38Y is a compact and efficient air conditioning solution that can quickly move from room to room. Unlike traditional central air conditioning systems, The Portable HVLS fan KA-38Y does not require any permanent installation or ductwork, making them ideal for homes, factories, apartments, or offices where a permanent installation is not feasible.
In terms of energy efficiency, The Portable HVLS fan KA-38Y is an excellent choice as they consume much less energy compared to traditional air conditioning systems. This not only reduces the cost of energy bills but also helps to reduce the carbon footprint of the user.
Finally, The Portable HVLS fan KA-38Y is also very easy to use and maintain. Most units come with a remote control, allowing users to adjust the temperature and settings from across the room. Maintenance is also a breeze, with most units requiring only regular cleaning of the water-moistened pads and air filters.
Overall, The Portable HVLS fan KA-38Y is an excellent solution for those seeking a flexible and efficient cooling solution. Whether it is for use in a single room or for moving from here to there, these units provide a convenient and cost-effective way to keep your home or office cool and comfortable all year round.
KA-38Y products come with a 10-year warranty on all parts and components. This ensures that you are protected against any manufacturing defects or issues.
Yes, KA-38Y units are designed to be highly energy-efficient. They use advanced technology to help reduce energy consumption and lower your utility bills.
Related industrial equipment
Complementary Ventilation & Cooling Models
Facility planning
Recommended applications
Engineering selection support
Confirm whether Portable HVLS Fan KA-38Y fits your facility
Share floor area, clear height, roof structure, and operating conditions for a project-specific recommendation.
